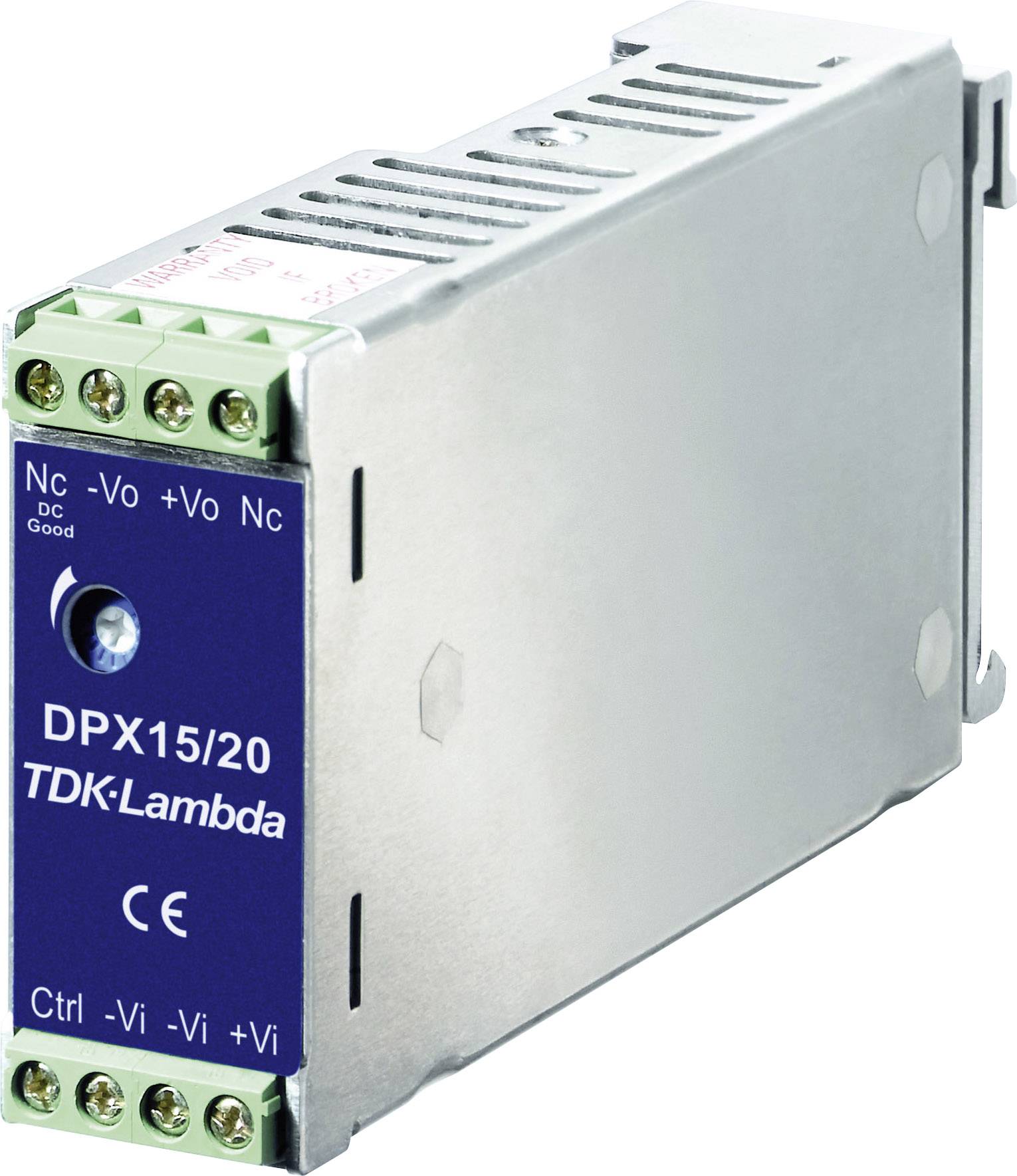

TDK-Lambda DPX-15-48WS-3P3 Rail mounted PSU (DIN) DC/DC 3.3 V DC 4.5 A 15 W 1 x

With the 25mm very narrow DC/DC-converter with a robust metal housing and can be edited with a grip on standard TS35/7.5 and TS35/15 DIN-rail mount. The devices can be via control signal can be switched on and. A green LED in the front panel indicates whether the output voltage is available. Protection against reverse polarity of input voltage, Ausgangsuberspannung, overcurrent and short circuit, as well as a one-,/output insulation of 1.6 kV ensure a safe operation. The robust modules cover with 2:1 and 4:1 inputs the entire input voltage range between 18V and 75V from. The devices are equipped with one or two output voltages between 3.3V and 15V available, whereby the models with an output voltage over a potentiometer on the front are adjustable. Up to three devices can be connected in parallel for increased power. The modules with up to 90% efficiency is convection cooled and can at temperatures from -40 to +85 °C can be used. The emitted interference corresponds to the EN 55022-B and the devices carry the CE-mark.Detailed information, please refer to the data sheets.... More
