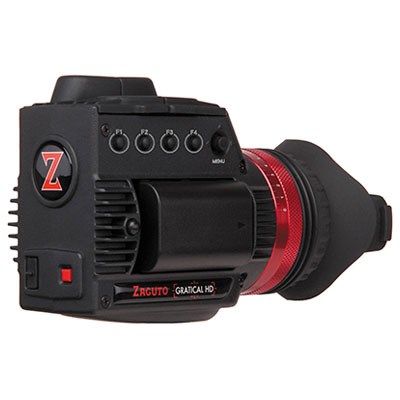

Zacuto Gratical HD EVF

Designed for both on-the-go and in the studio, the Zacuto Gratical HD Micro-OLED Electronic Viewfinder (EVF) provides filmmakers with a bright, crystal clear view. It features a 5.4 million pixel micro-OLED display, high quality precision optics with a built in -1 to +4 diopter, a powerful FPGA dual-core processor and HD-SDI input and output and a HDMI input and output with weather-resistant covers. Mounting options include both a 1/4" 20 screw hole and a ¼ 20 rosette on the side.

Zacuto Gratical HD EVF

Micro-OLED Display

The Gratical HD has a Zacuto designed Micro-OLED 0.61" diagonal display with 5.4 million pixels to provide a hugely expanded contrast range. With Micro-OLED screens, each pixel is lit individually so that when one is turned off there is true black. This makes for a wider contrast range and more vibrant colors for a vivid, enhanced picture.

• Screen dimensions: 0.61" diagonal
• Resolution: Full display 1280x1024, 16x9 1280x720 HD
• Contrast ratio: 10,000:1
• Refresh rate: 60Hz
• Colour depth: 24-bit RGB
• Luminance: 120-250 cd/m^2
• Pixel info: 2687.21 PPI
• 5.4 million pixels
• 16.7 million colours

Coneections & Compatibility

Incorporates an HD-SDI input and output and an HDMI input and output with weather resistant covers to prevent moisture or debris from getting in the open ports.

• HDMI - 14b compliant, resolutions up to 1080p/60, loop out
• HD-SDI - resolutions up to 1080p/60, loop out
• Cross conversion - HDMI to HD-SDI, independent LUT on output stream

Processor

The Gratical HD is powered by a state-of-the-art FPGA dual core processor that supports a host of professional features including HDMI and SDI with simultaneous cross-conversion, Vectorscope, Waveform (3D), Histogram, Timecode, LUT import, creating, and editing, and more. (See full feature list below.) The processing power of the Zacuto Gratical HD far surpasses all other EVF units on the market.

Firmware

The built-in USB port is used for downloading firmware updates and additions. Gratical HD users have access to all future updates and additions free of charge for life. We are constantly working on improving workability of current features and creating new features to keep your EVF up to date and future proof. We often take user requests into consideration. If there's something you'd like to see included, contact us to make a suggestion. You could see it in the next firmware!

Power & Mounting

Self powered with an included LP-E6 battery, the Gratical HD has a run time of about 4 hours. You can also use a LP-E6 to d-tap cable (like this one) and power the unit off system batteries for a much longer run time. Mounting options include both a ¼ 20 screw hole underneath the EVF and a ¼ 20 rosette on the side. Attach your electronic viewfinder with an arm or Zacuto Axis Mini as part of a Zacuto Next Generation Recoil Rig.
