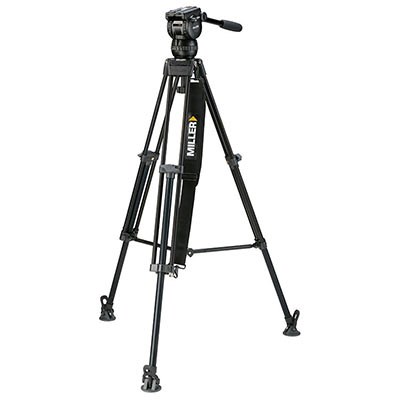

Miller CompassX CX2 3702 Toggle LW Tripod
The Miller CompassX CX2 3702 Toggle LW 1-stage, 75mm tripod system for professionals incorporates Miller's new CompassX fluid head with CB Plus technology. The CX2 head offers an 8kg maximum payload and boasts 16 positions of counterbalance for fine, rapid adjustment. The side loading quick-release plate enables quick and easy mounting of camera rigs. More
Finance options available
The Miller CompassX CX2 3702 Toggle LW 1-stage, 75mm tripod system for professionals incorporates Miller's new CompassX fluid head with CB Plus technology. The CX2 head offers an 8kg maximum payload and boasts 16 positions of counterbalance for fine, rapid adjustment. The side loading quick-release plate enables quick and easy mounting of camera rigs.
Key Features: Miller CompassX CX2 3702 Toggle LW Tripod

IBC Show 2017 - Miller CompassX Fluid Head Series
Key Features: Miller Toggle 75 LW 1 Stage Alloy Tripod (440)
- 75mm alloy bowl
- 1-stage fast toggle adjustment legs
- Height range: 79-150cm
- Transport/closed down length: 100cm
- Durable black anodised alloy tubing
- Flip out transport clips
- Integrated stainless steel spikes
- Comes with above ground spreader, rubber feet and 1-stage tripod bag
- 3 year warranty
Key Features: CompassX 2 Fluid Head (1090)
- Compact, light and versatile
- 75mm ball levelling
- Perfect for payloads to 0-8kg (17.6lbs)
- 15+0 CB Plus selectable counterbalance positions
- Ergonomically located CB Plus switch
- 3+0 selectable positions of fluid pan and tilt drag
- Positive selection radial ring controls
- Illuminated bubble level
- Precise floating pan-tilt calliper locks ensure bounce free on-off performance
- Side loading, 60mm balance travel camera plate with 1/4" + pin, 1/4" and 3/8" screws
- Robust construction for rugged outdoor shooting conditions
- Side mounting point for viewfinders and accessories
- Optional second pan handle mount
- 3 year warranty
Specifications:
- Payload Range: 0-8.0kg (0-17.6lbs)
- Weight: 5.8kg (12.8lbs)
- Height Range: 790-1500mm (31.1-59")
- Transport Length: 1000mm (39.4")
- Counterbalance Positions: 16 selectable positions (15+0)
- Pan Tilt Drag: 3 selectable fluid drag positions + 0
- Pan Tilt Locks: Positive lock calliper brake system
- Tilt Range: + 90°/ -75°
- Pan Range: 360°
- Camera Platform: Quick release, side load camera plate
- Sliding Range: 60mm (2.4")
- Mounting Base: Ø75mm (2.9") ball levelling
- Height Above Bowl: 167mm (6.6")
- Illuminated Controls: Bubble level
- Pan Handle: Fixed length 390mm (15.4")
- Temperature Range: -40° to +65°C (-40° to +149°F)
- Leg Extension: 1-stage
- Lock Type: Toggle
- Leg Material: Alloy
Kit contents:
- 1090 - CX2 fluid head
- 440 - Toggle 75 LW tripod (alloy)
- 835 - DS tripod spreader
- 679 - Pan handle - fixed with clamp
- 550 - Rubber feet (set of 3)
- 554 - Shoulder strap (padded)
- 874 - DS softcase LW 1-stage
Product Specification
Closed Length [cm] | 100.0 |
Colour | Black |
Features | Spirit Level, Spreader Block, Carry Case |
Included Accessories | CX2 fluid head (1090), Toggle 75 LW tripod (440), DS tripod spreader (835), Pan handle - fixed with clamp (679), Rubber feet - set of 3 (550), Shoulder strap (554), DS softcase LW 1-stage (874) |
Is Good For | Video |
Leg Sections | 1 |
Max Height [cm] | 150.0 |
Max Load [g] | 8000 |
Min Height [cm] | 79.0 |
Primary Material | Alloy |
Weight [g] | 5900.00 |
With Head | Yes |
Manufacturers Link | Miller |
