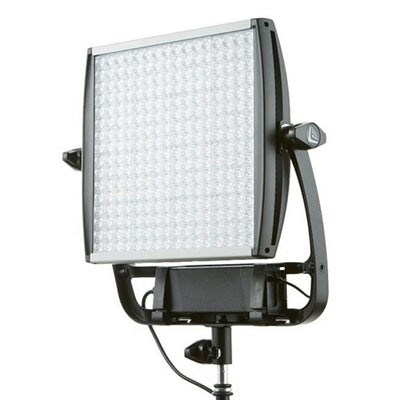

Litepanels Astra 6X Daylight LED Panel
Litepanels Astra 6X Daylight LED Panel Image 0Litepanels Astra 6X Daylight LED Panel Image 1Litepanels Astra 6X Daylight LED Panel Image 2
Product Code: 1628500

Litepanels Astra 6X Daylight LED Panel

Special Order
This product is either directly despatched from our supplier or produced to order. Delivery usually takes at least 4 weeks. Order today and no payment will be taken until the item is in stock and ready to be despatched. Full details »

Thinking of upgrading? Trade in today

was: £914.00 £864.00
Please Login or Register to add to your Wish List.

Flexible Finance Options Available Finance options available

Spread the cost over 12, 24 or 36 months

Pay in 3 interest-free payments with PayPal.svg Learn more

Back to top

The Litepanels Astra 6X Daylight LED Panel is designed with select premium quality, high CRI, surface-mount LEDs and paired with custom optics. The Astra 6X is 50% brighter than the first generation Astra and 6 times brighter than the original 1x1, giving longer throw and illuminating a wider area to compete with exterior light sources or illuminate a large area with a single fixture.

Key Features: Litepanels Astra 6X Daylight LED Panel

  • Premium selected LEDs paired with custom optics
  • Flexible, modular concept
  • Optional communications module allows the brightness, colour temperature, and cooling mode to be controlled via DMX or Bluetooth
  • Optional yoke-mounted Gold Mount or V-Mount battery plates
  • Field-replaceable fan module and external power supply
  • Modern fixture design
  • Easily identifiable and ergonomic manual controls for dimming, colour, and power status
  • Aluminium I-beam core construction to provide maximum durability and superior thermal management
  • Integrated smooth dimming from 100% to 0 with no colour shift
  • Flicker-free at any frame rate or shutter angle
  • Aluminium accessory mounting points and lens/filter rails
  • End cap exhaust vents angle downward to direct air flow away from the fixture and help prevent foreign material from entering
  • Durable, industry standard 3-pin XLR locking power connector
  • Optional battery plates with dual integrated cable guides
  • Removable TVMP connector for flexible mounting options
  • Two alternate ¼-20 mounting points

Specifications

  • Beam angle (degrees): 45
  • Max. power draw (Watts): 105
  • Comparative output: 200 W HMI
  • Optics: Custom Lens
  • Remote Control: Optional (DMX or Bluetooth)
  • Weight: 3.2 kg
  • Power supply: 13-24VDC 120-240 VAC
  • Dimensions (W x H x D): 45 x 41.3 x 13.4 cm
  • Fixture type: Panel Lights
  • Colour temperature: Daylight
  Back to top

Product Specification

AC Input Power 100-240AC, 13V to 24V
Battery Plate V-Mount, Gold Mount
Beam Angle 46
Colour Accuracy Standard: CRI 95+
Colour Accuracy Standard: TLCI 95+
Colour Temperature [k] Daylight
Cooling System Passive or Active Cooling
Dimming 0-100%
Equiv Output[W] 105.0
Power Source 13-24VDC 120-240VAC
Remote Control Type Wireless DMX (LumenRadio) Module / Wired DMX Modules (RJ-45 and XLR5) / Bluetooth Module
Size [cm] H41.3 x W45 x D13.4 cm
Weight [g] 3200.00
Manufacturers Link Lite Panels
